Outdoor Protection
Real-Time Control
Grid Support
Engineered feature supporting transformer isolated 100v, 70v and 4Ω outputs, balanced, no grounding. for peak operational performance.
Engineered feature supporting 5 led indicators for status display. for peak operational performance.

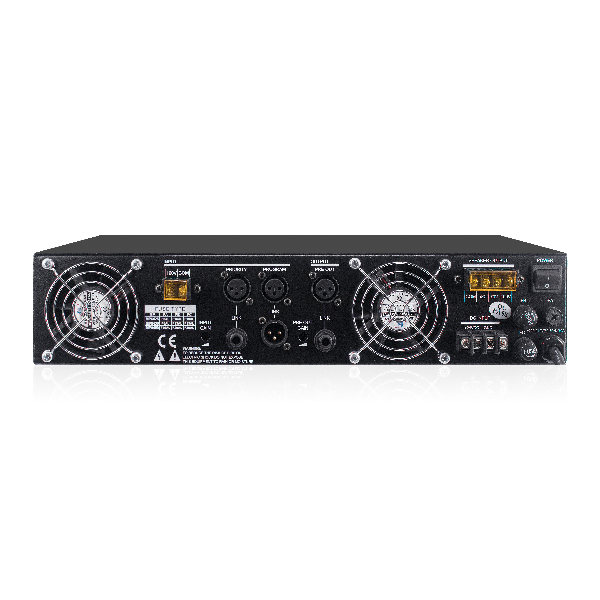

Engineered feature supporting xlr socket and 6.3 mm jack for amplifier link. for peak operational performance.
Transforming conventional environments into dynamic high-resolution digital hubs.
Engineered feature supporting short circuit output protection & led display. for peak operational performance.
Engineered feature supporting series amplifiers of high output power are available. for peak operational performance.
Configured with power saving controls to decrease general electricity consumption levels.
Power: Red, Clip: Red”, Sound: Green, Protection: Red, Temperature: Orange
Designed to satisfy versatile structural requirements. This model is widely integrated across multiple fields:
Model | MP6425 | MP6438 | MP6450 |
Rated Power | 250W | 380W | 500W |
Input sensitivity | 1V | ||
S/N Ratio | >90dB | ||
Frequency Response | 80Hz-16kHz/±3dB | ||
THD 4W/1kHz | <0.5 % | ||
Cooling Style | 12V DC Fan | ||
Indicators | Power: Red, Clip: Red”, Sound: Green, Protection: Red, Temperature: Orange | ||
Protection | Turn on delay, thermal, DC fault, short circuit | ||
240V AC Fuse | F6AL | F8AL | F10AL |
24V DC Fuse | FB15AL/FC10AL | FB/FC: 15AL | FB/FC: 20AL |
Power Supply | AC220V-240V/50-60Hz 24V DC | ||
Power Consumption | 500W | 760W | 1000W |
Dimension | 88´483´390mm | ||
Gross Weight | 17kg | 19.3kg | 20.6kg |
Net Weight | 16kg | 18.3kg | 19.5kg |
Submit details to get direct engineer response, structural calculation advising, or customized dimensions pricing.
MP60 is a small power mixer amplifier, compact, cost-effective. Suitable for small-sized broadcast system, the...
DMA60U Digital Mixer Amplifier is a multi-functional mixer amplifier integrated with the functions of USB...
MA2250U is a 2-Channel multimedia mosque mixer amplifier with RMS power 2*250W. Separate 2 channels...
