Engineered feature supporting rated power 35w/60w/120w, 70v/100v&4 for peak operational performance.
Engineered feature supporting 16Ω output for peak operational performance.
Engineered feature supporting in high efficiency digital amplifier module and switching power technology, for peak operational performance.
Transforming conventional environments into dynamic high-resolution digital hubs.
Engineered feature supporting with 100v/70v transformer for peak operational performance.
Engineered feature supporting compact 1 u mini size public address amplifier for peak operational performance.
Configured with power saving controls to decrease general electricity consumption levels.

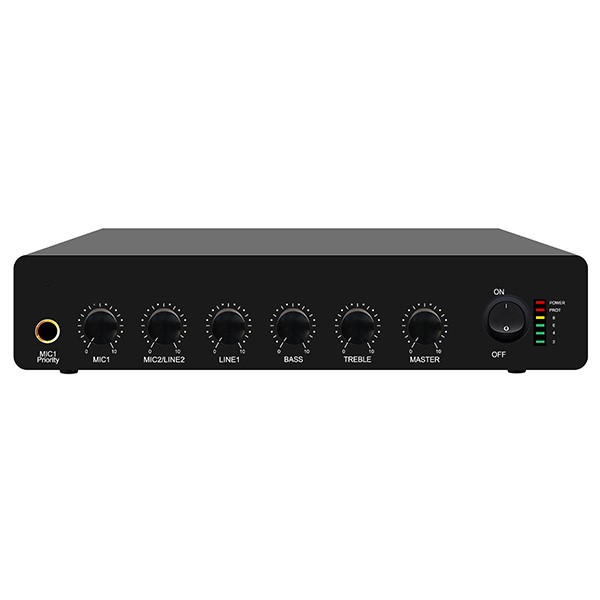

MP60 is a small power mixer amplifier, compact, cost-effective. Suitable for small-sized broadcast system, the background music in supermarket, and public address in the classroom. It's very thin with 1 U height. It supports priority and two modes of power supply - AC and SD. It has line 1-2 inpu...
Designed to satisfy versatile structural requirements. This model is widely integrated across multiple fields:
|
Model |
MP60 |
|
|
Rated power |
60W |
|
|
Input sensitivity |
MIC |
5mV |
|
LINE、EMC |
775mV |
|
|
Noise |
MIC |
≥60 dB |
|
LINE、EMC |
≥70 dB |
|
|
Frequency response |
MIC |
100Hz-10kHz 80Hz-16kHz |
|
LINE EMC |
||
|
THD |
≤0.2%（1kHz ,1/3 output voltage） |
|
|
Operating temperature |
-20℃-50℃ |
|
|
Rated output |
70V/100V support 4-16Ω |
|
|
Line output |
1V RMS |
|
|
Tone |
Bass |
±10dB （100Hz） |
|
Treble |
±10dB （10kHz） |
|
|
2 MIC（MIC1with priority） |
MIC1 input by 6.3 socket,MIC2 by XLR socket and shared front panel LINE2 knob,with Phantom power switch,with GAIN control,-10dB to +10dB |
|
|
Speaker Outputs |
COM 4-16Ω，70V,100V，24V input |
|
|
Power supply |
110-240V/50-60Hz DC24V |
|
|
Power consumption |
78W |
|
|
Packing size（mm） |
（L×W×H） 333×292×90 |
|
|
Equipment size（mm） |
（L×W×H） 206×250×44 |
|
|
Gross weight |
3.10kg |
|
|
Net weight |
2.45kg |
Submit details to get direct engineer response, structural calculation advising, or customized dimensions pricing.
DMA60U Digital Mixer Amplifier is a multi-functional mixer amplifier integrated with the functions of USB...
MA2250U is a 2-Channel multimedia mosque mixer amplifier with RMS power 2*250W. Separate 2 channels...

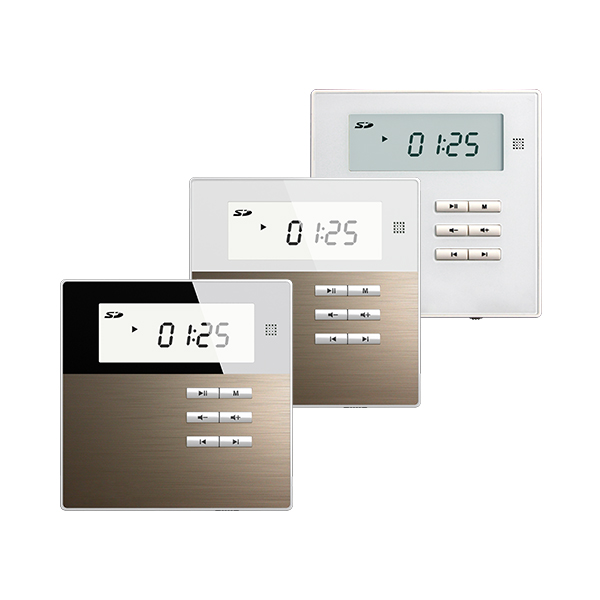

DM835 is a convenient and efficient on-wall stereo music amplifier. It has three colors, with...
