Engineered feature supporting 70v/100v & 4 for peak operational performance.
Engineered feature supporting 16Ω speaker output for peak operational performance.
Engineered feature supporting rated power: 2 for peak operational performance.
Transforming conventional environments into dynamic high-resolution digital hubs.
Engineered feature supporting separate 2 channels output control of volume/echo/bass/treble for peak operational performance.
Engineered feature supporting in 3 mic and 1 aux and usb/bluetooth, 1 chimes, 1 aux output for peak operational performance.
Configured with power saving controls to decrease general electricity consumption levels.

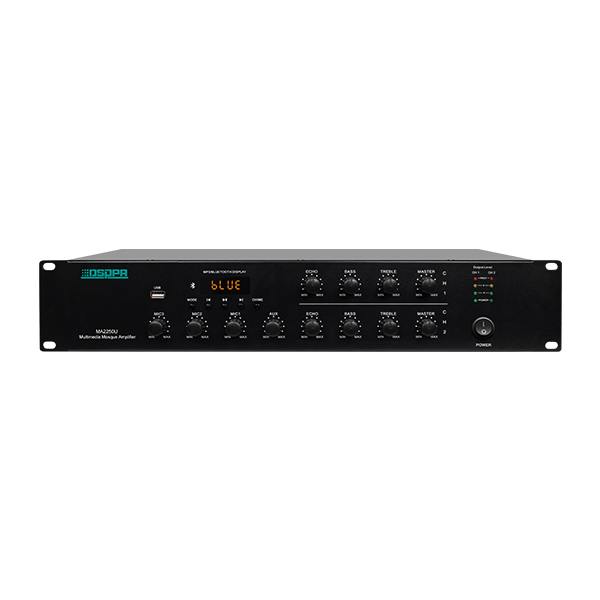

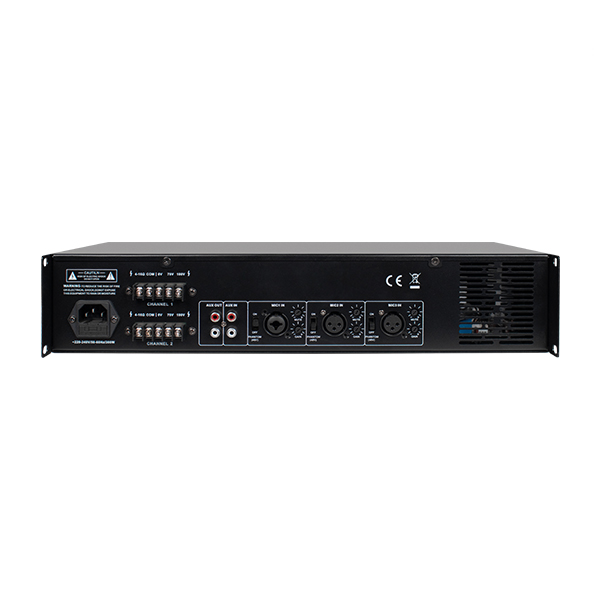

MA2250U is a 2-Channel multimedia mosque mixer amplifier with RMS power 2*250W. Separate 2 channels output control of Echo/Bass/Treble/ Volume and built-in 3 Mic and 1 AUX and USB/Bluetooth. It is suitable for mosques supermarkets, meeting rooms, training rooms and other places.
Designed to satisfy versatile structural requirements. This model is widely integrated across multiple fields:
Model | MA2250U |
Rated Power | 2×250W |
Output Interface | Barrier Terminal Block |
AUX Input Sensitivity | 350MV |
MIC Input Sensitivity | 20kΩ/Balanced, 10kΩ/ unbalanced |
SNR | ≥75dB |
Tone Adjustment | Bass:±10dBTreble:±10dB |
Frequency Response | 45Hz-20kHz（±1dB） |
Distortion | <0.1%@1KHz |
Power Supply | AC220-240V/50Hz |
Protection | Load short circuit, DC output, power on/off, over temperature |
Power Consumption | 700W |
Machine Size | （L×W×H）484×412×90mm |
Package Size | （L×W×H）535×470×165mm |
Net Weight | 16.0kg |
Gross Weight | 16.8kg |
