Outdoor Protection
Real-Time Control
Grid Support
Engineered feature supporting 24:2008 certification for reliable performance in critical voice evacuation scenarios. for peak operational performance.
Engineered feature supporting selectable power taps (12w/6w/3w) for flexible adaptation to various area sizes and background noise levels. for peak operational performance.
Engineered feature supporting in thermal fuse safeguards the speaker line from overheating, while dual in for peak operational performance.
Transforming conventional environments into dynamic high-resolution digital hubs.
Engineered feature supporting out ceramic connectors ensure secure and stable wiring. for peak operational performance.
Engineered feature supporting retardant abs v0 body and aluminum grille with ip54 rating offer robust durability for demanding indoor applications. for peak operational performance.
Configured with power saving controls to decrease general electricity consumption levels.

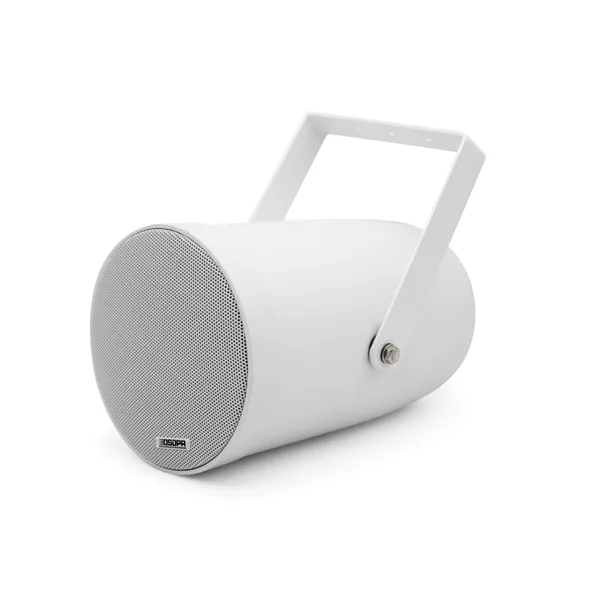

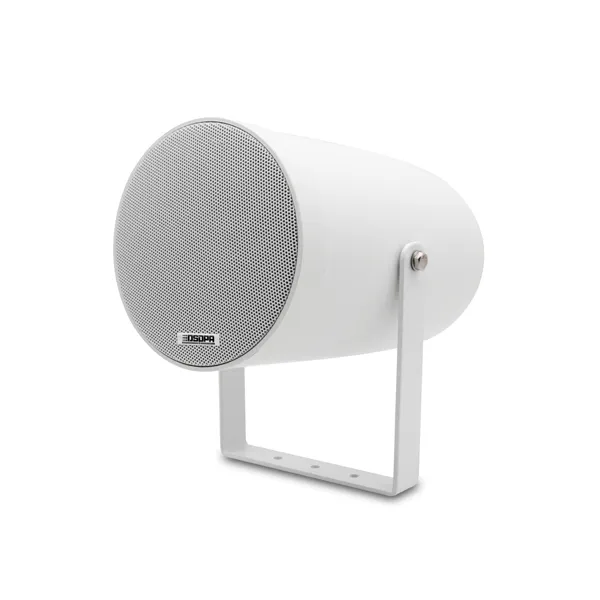

The DSP207EN Fireproof Wall-Mounted Speaker is an on-wall or shelf-mountable 100V projector speaker engineered for high-quality public address and critical voice evacuation systems, boasting EN54-24:2008 certification. It features a wide-band 5" bi-cone driver and offers selectable power taps (12...
Designed to satisfy versatile structural requirements. This model is widely integrated across multiple fields:
Model | DSP207EN |
Standards | EN54-24:2008 Loudspeaker for voice alarm system for fire detection and fire alarm system |
Environmental Class EN54-24 | Type A, indoor applications |
IP rate protection (EN60529) | IP54 |
Way no./Speaker type | 1-way dual cone, full range Ø130mm |
Transformer | 100V (12W – 6W – 3W) |
In-axis Freq. response (-10dB) | 110–18,000Hz |
Sensitivity (@1m, 1W) | 86.3dB |
SPL max (@1m, Pmax) | 97.2dB |
Coverage angle (-6dB) | 360° (500 Hz), 253.5° (1 kHz), 125.5° (2 kHz), 86.8° (4 kHz), 59.4° (8 kHz) |
Directivity Index DI (dB) | 1.3 (500 Hz), 3.9 (1 kHz), 5.4 (2 kHz), 6.7 (4 kHz), 8.2 (8 kHz) |
Directivity Factor Q | 1.4 (500 Hz), 2.4 (1 kHz), 3.5 (2 kHz), 4.6(4 kHz), 6.6 (8 kHz) |
Nominal/Music power | 12W/24W |
Nominal Impedance @ 1kHz | 833Ω (12W), 1.66kΩ (6W), 3.33kΩ (3W) |
Dimensions Ø - P | 140mm – 240mm |
Aluminium bracket | 140mm – 152mm |
Weight | 1.2kg |
Material | ABS V0 type, painted grid in aluminium |
Colour | White |
Connections | Ceramic connectors and thermal fuse |
Submit details to get direct engineer response, structural calculation advising, or customized dimensions pricing.

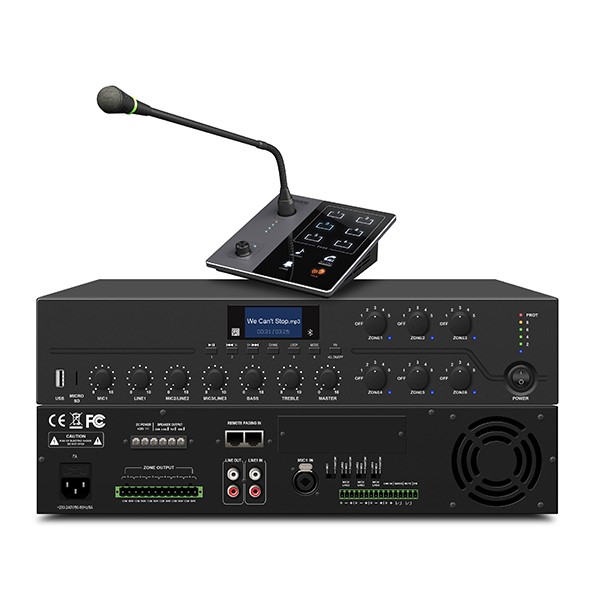

DMA6250U Digital Mixer Amplifier can be used in conjunction with the DMA20 Remote Paging Station,...
Professional public address and commercial audio solution from Tecnoled. High performance component designed for robust...

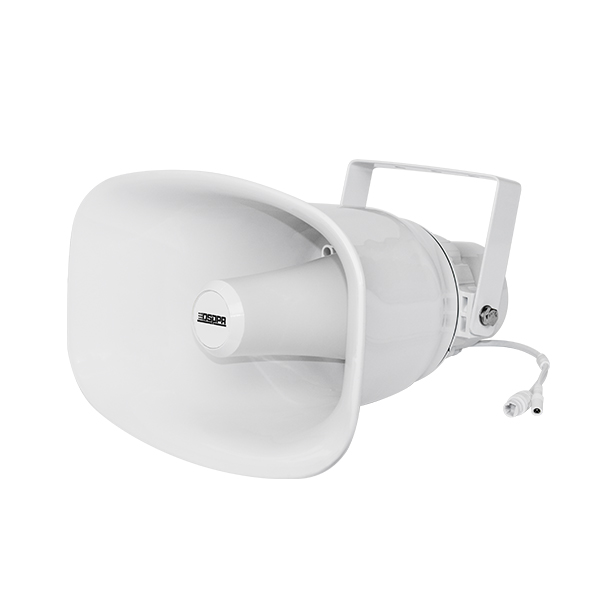

This device is a network outdoor horn speaker that can be powered by POE+ (AT...
