Outdoor Protection
Real-Time Control
Grid Support
Engineered feature supporting support bluetooth transmitter mode and receiver mode. for peak operational performance.
Engineered feature supporting support transmission to 2 bluetooth devices. for peak operational performance.
Engineered feature supporting with 50w x 2 powerful bluetooth amplifiers. for peak operational performance.
Transforming conventional environments into dynamic high-resolution digital hubs.
Engineered feature supporting support aptx hd reception & transmission, qualcomm qcc3040 chip for peak operational performance.
Engineered feature supporting tune your own sound with acpworkbench tunning tool support. for peak operational performance.
Configured with power saving controls to decrease general electricity consumption levels.

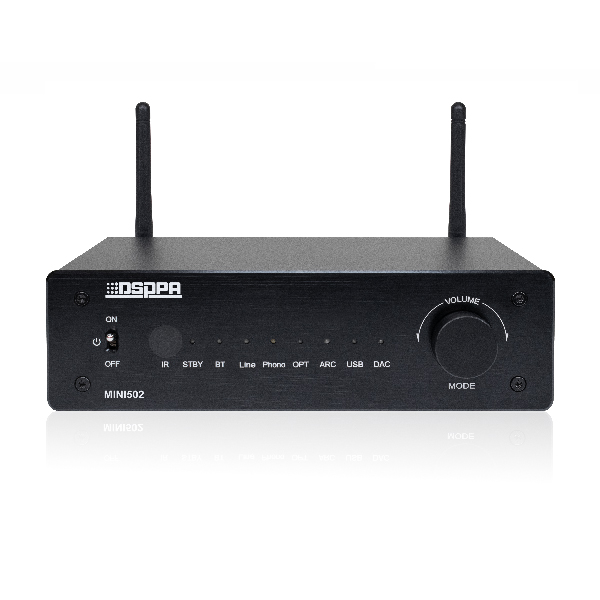

MINI502 is a Bluetooth wireless stereo amplifier with the ability to transmit your music wirelessly to Bluetooth earphones. MINI502 not only can receive music from your mobile, but also has analog and digital inputs, it comes with phono input for use with turntable which needs higher amplificatio...
Designed to satisfy versatile structural requirements. This model is widely integrated across multiple fields:
Model | MINI502 | |
Bluetooth | ||
Bluetooth Standard | 5.2 | |
Transmit | 2x Bluetooth TX, able to connect up to 2 Bluetooth speakers or earbuds | |
Receive | 2x Bluetooth RX, able to connect up to 2 Bluetooth transmitter devices | |
Codec | aptX HD, aptX LL, aptX AD, AAC, SBC | |
Amplifier | ||
Amplifier Power | 50W *2 @ 24V 4ohm 30W *2 @ 24V 8ohm | |
Speaker Impedance | 4-8ohm | |
Frequency Response | 20kHz | |
THD+N | <0.1% @ 1W 1kHz | |
SNR | >93db @ max power | |

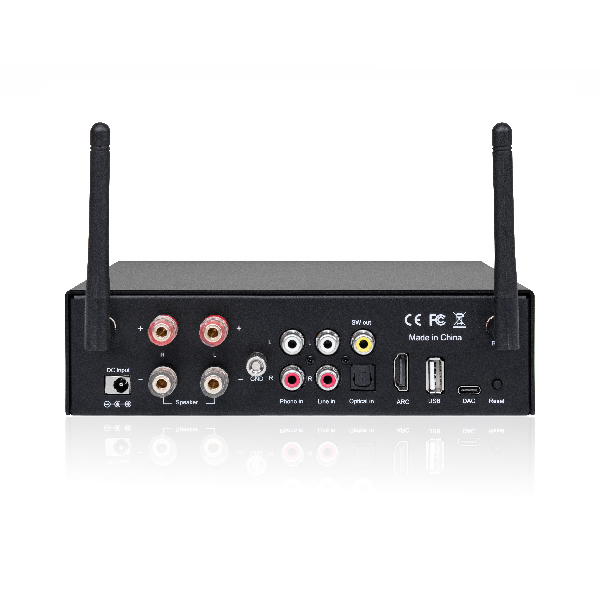

Audio I/O | ||
Audio Input | Line in | Analog RCA, Max 2V RMS input |
Phono in | Analog RCA, Support MM/MC | |
Optical in | Up to 192kHz/24bit PCM only | |
TV ARC | PCM only, CEC function supported | |
USB Host | USB disk drive playback, support resume playback Storage format: Fat16, Fat32, exFAT, up to 128GB Support codec: mp3(data rate up to 384kbps), mp4, wma, mov, m4a, aac, flac(96kHz/24bit), ape | |
USB Type-C | USB DAC for PC connection, sample rate: 48kHz | |
Audio Output | Subwoofer out | Max 3V RMS output, Frequency Response: 250Hz |
Speaker out | 50W per channel @ 4ohms | |
General | ||
Power Input | 24V/4.16A | |
Weight | 900g | |
Size | 185 x 155 x 50 mm | |
In the Box | Main Unit x1 / Antenna(3dBi) x2 / Remote Control x1 User's Manual x1 / Power Adapter x1 / Power Cable x1 |
