Engineered feature supporting condenser microphone. for peak operational performance.
Engineered feature supporting cardioid polar pattern. for peak operational performance.
Engineered feature supporting with signal indicator for working status. for peak operational performance.
Transforming conventional environments into dynamic high-resolution digital hubs.
Engineered feature supporting five zones selection and all zone selection. for peak operational performance.
Engineered feature supporting with 1 aux input. for peak operational performance.
Configured with power saving controls to decrease general electricity consumption levels.

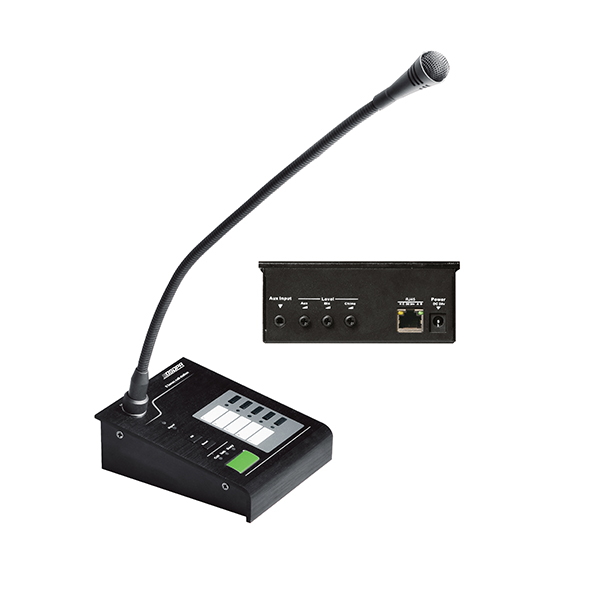

MAG505R paging microphone has a condenser microphone. With signal indicators, it can display the working status of each zone. It has RJ45 port and 3.5mm stereo RCA port, as well as RS485 port.
Designed to satisfy versatile structural requirements. This model is widely integrated across multiple fields:
Model | MAG505R |
Power Supply | 24VDC, 500mA |
MAX. Connection Length | 500m |
Microphone Type | Condenser microphone |
Polar Pattern | Cardioid |
Connectors | RJ45, 24VDC power jack, 3.5mm stereo RCA |
Frequency Response | -3dB 150Hz-22kHz |
Input Level MIC | -46dBV, Aux: -10dBV |
Output Impedance | Balanced 600 Ohms |
Input Impedance MIC | 600 Ohms, AUX: 50k Ohms |
Output Level | 10dBV |
S/N Ratio | -60dB |
Interface | RS-485 |
Dimensions | 460mm×140mm×115mm |
Weight | 670g |
