Outdoor Protection
Real-Time Control
Grid Support
Engineered feature supporting friendly big display screen. for peak operational performance.
Engineered feature supporting easy to control the touch screen (or touch pad). for peak operational performance.
Engineered feature supporting automatic chinese/english display mode conversion. for peak operational performance.
Transforming conventional environments into dynamic high-resolution digital hubs.
Engineered feature supporting 50×250 strong digital broadcasting matrix. for peak operational performance.
Engineered feature supporting in exclusive dsppa electroacoustic program. for peak operational performance.
Configured with power saving controls to decrease general electricity consumption levels.

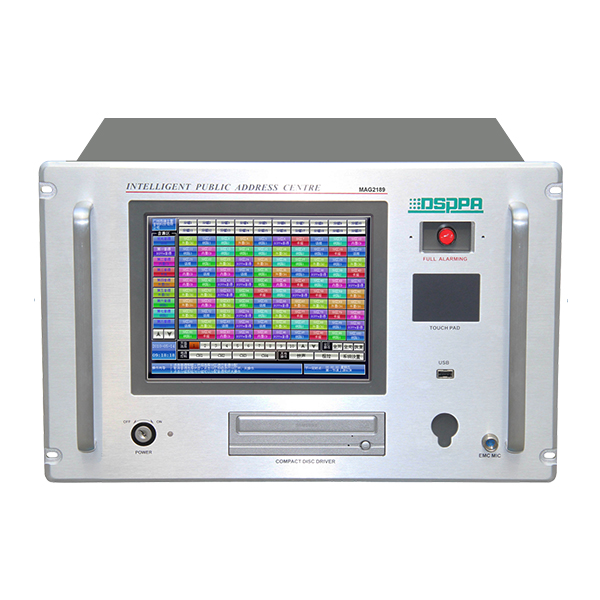

MAG2189 Intelligent Public Address Multimedia Matrix Center has 10.4'' color touch screen and automatic Chinese/English display mode conversion, operating conveniently and easily. 1-48 remote paging channels and strong audio matrix design. Built-in optional module function: Common input, Priority...
Designed to satisfy versatile structural requirements. This model is widely integrated across multiple fields:
|
Model |
MAG2189 |
|
Color |
|
|
Screen size |
10.4 inches |
|
Control mode |
Touchpad + touch screen |
|
Working environment |
Ambient temperature: 5-35oC; relative humidity:≦75%; air pressure≈86-106kPa |
|
Timing power with load capacity |
Single-channel current 2A, 4-channel total current 5A |
|
System audio signal SNR (A-weighted) |
≥90dB |
|
System audio signal distortion |
0.1%（1kHz） |
|
System audio signal input level range |
1Vrms，2Vrms，4Vrmsoptional |
|
System audio signal input impedance |
10kΩ |
|
System audio signal nominal output level |
0dBV |
|
Self-consumption |
AC 220V/50Hz/120W |
|
Package Size (L × W × H) |
540´535´355mm |
|
Product Size (L × W × H) |
484´408´308mm |
|
Gross weight |
35.1kg |
|
Net weight |
27kg |
|
Configuration |
Manual 1; power cable 1; key 2; protective glass 1 |
|
System software |
PMM package. All rights reserved.Reproduction orcounterfeit is not allowed. |
