Outdoor Protection
Real-Time Control
Grid Support
Engineered feature supporting 6.5” kevlar bass cone driver rubber overhang. for peak operational performance.
Engineered feature supporting 1” aluminum dome driver eos waveguide design. for peak operational performance.
Engineered feature supporting 35w lf @4ohm, 15w hf@8ohm full digital amplifier. for peak operational performance.
Transforming conventional environments into dynamic high-resolution digital hubs.
Engineered feature supporting can hook up a slave speaker to become stereo speakers. for peak operational performance.
Engineered feature supporting streaming music via network without distance limitation or bluetooth 5.0 up to 15 meters. for peak operational performance.
Configured with power saving controls to decrease general electricity consumption levels.

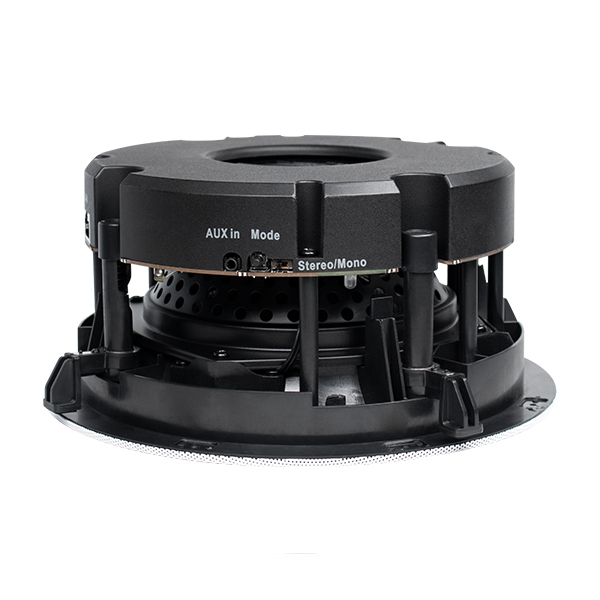

DW2235 is a 2-way 6.5"ceiling speaker with 35W WiFi and Bluetooth amplifier built-in. You can stream music from your smart device, NAS or streaming services such as Spotify, Tidal, Deezer, Qobuz, Amazon Music and others by 4Stream APP, Airplay, Bluetooth or other DLNA apps. By adding multiple DW2...
Designed to satisfy versatile structural requirements. This model is widely integrated across multiple fields:
|
Model |
DW2235 |
|
|
Master Speaker (Stereo set / Mono) |
||
|
Connections |
||
|
Power Supply |
24V/4.16A |
|
|
Audio Input |
AUX (3.5mm) |
Max 1V RMS input |
|
Buetooth 5.0 |
AAC FLAC |
|
|
Audio Output |
Speaker out |
|
|
Network |
WiFi |
2.4G |
|
Standard |
802.11 b/g/n 1T1R |
|
|
Frequency |
2.412GHz-2.484GHz |
|
|
Transmit |
802.11b: +20dBm(Max.) |
|
|
802.11g: +18dBm(Max.) |
||
|
802.11n: +15dBm(Max.) |
||
|
Receive Sensitivity |
802.11b: -89dBm |
|
|
802.11g: -81dBm |
||
|
802.11n: -71dBm |
||
|
LAN |
RJ45 |
|
|
Stereo / Mono Switch |
Switch Stereo / Mono Output: Stereo: Master speaker output Right channel, Slave speaker output Left channel Mono: Left + Right Channel for both speakers |
|
|
Mode Button |
Change Source Mode: WiFi / BT /AUX in |
|
|
Speaker |
||
|
Bass |
6.5 inch kevlar bass cone driver rubber overhang |
|
|
Tweeter |
1 inch aluminum dome driver EOS waveguide design |
|
|
Sensitivity |
Bass: 86±3dB Tweeter: 89±3dB |
|
|
Size |
23cm×10.5cm (deep) |
|
|
Amplifier |
||
|
High/Low Frequency |
LF 4Ω 35W *2 HF 8Ω 15W *2 |
|
|
Frequency Response |
LF: 60Hz-2500Hz HF: 3000Hz-20000Hz |
|
|
Signal Noise Ratio |
≥85dB |
|
|
THD+N |
＜0.9% |
|
|
Crosstalk |
＞55dB |
|
|
Slave Speaker |
||
|
Connections |
||
|
Audio Input |
Speaker out |
|
|
Speaker |
||
|
Bass |
6.5 inch kevlar bass cone driver rubber overhang |
|
|
Tweeter |
1 inch aluminum dome driver EOS waveguide design |
|
|
Sensitivity |
Bass: 86±3dB Tweeter: 89±3dB |
|
|
Size |
23cmx10.5cm (deep) |
