Engineered feature supporting with a 4.3" resistive touch screen and a push for peak operational performance.
Engineered feature supporting button power switch. for peak operational performance.
Engineered feature supporting support 100v constant voltage function, configurable through the system. for peak operational performance.
Transforming conventional environments into dynamic high-resolution digital hubs.
Engineered feature supporting chime function operable via the touch screen, with chimes and siren alarm sources changeable through usb. for peak operational performance.
Engineered feature supporting siren alarm function, which can be triggered by dry contacts (2p of 7p) of 3.81mm phoenix connectors on the rear panel. for peak operational performance.
Configured with power saving controls to decrease general electricity consumption levels.

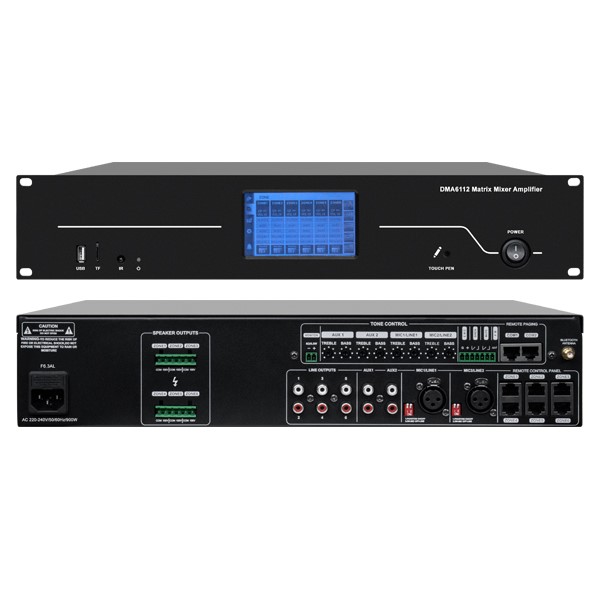

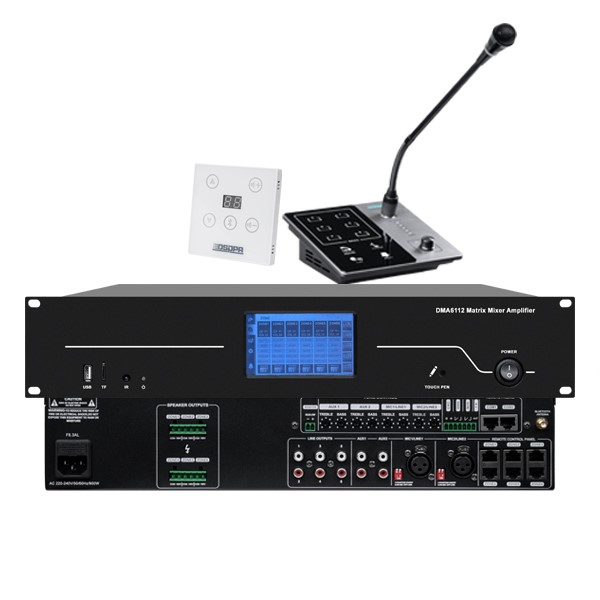

The DMA6112 DMA6124 DMA60M DMA60W multi-function matrix public address system is a newly designed and highly integrated audio matrix host system. This new system not only features an 8×6 signal matrix but also includes multimedia playback capabilities. It incorporates a six-channel output design ...
Designed to satisfy versatile structural requirements. This model is widely integrated across multiple fields:
Model | DMA6112 | DMA6124 |
AUX Input Sensitivity | AUX1=AUX2=775±100mV | |
MIC Input Sensitivity | MIC1=MIC2=5±1mV | |
LINE Input Sensitivity | LINE1=LINE2=350±50mV | |
Output Power | 120W*6 | 240W*6 |
Distortion at Rated Power (Within Frequency Response Range) | 95V<1% 100V<5% | |
Microphone S/N Ratio A-Weighted | ≥71dB | |
Line S/N Ratio A-Weighted | ≥76dB | |
Line Input Frequency Response | 80Hz-15kHz (under normal operating conditions ±3dB) | |
Overload Source Electromotive Force | ≧14dB (constant voltage) | |
Operating Voltage | AC220-240V | |
Tone Adjustment Range | Bass: ±10dB (100Hz), Treble: ±10dB (10kHz), both with an error of ±2dB | |
LINE OUT Output Level | 1000±100mV | |
MIC1-2 Phantom Power | 48V±5V | |
Operating Temperature | -10-50℃ | |
Package Dimensions | 535×540×155mm | |
Machine Dimensions | 483×353×88mm | |
Gross Weight | 8.45kg | |
Net Weight | 6.95kg |
