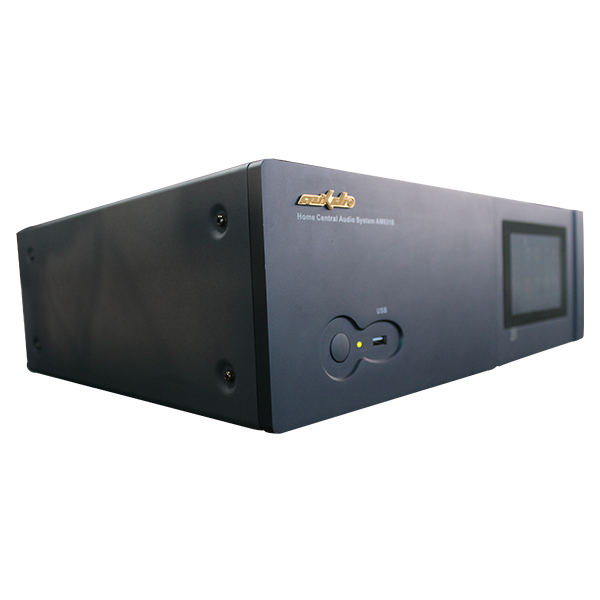

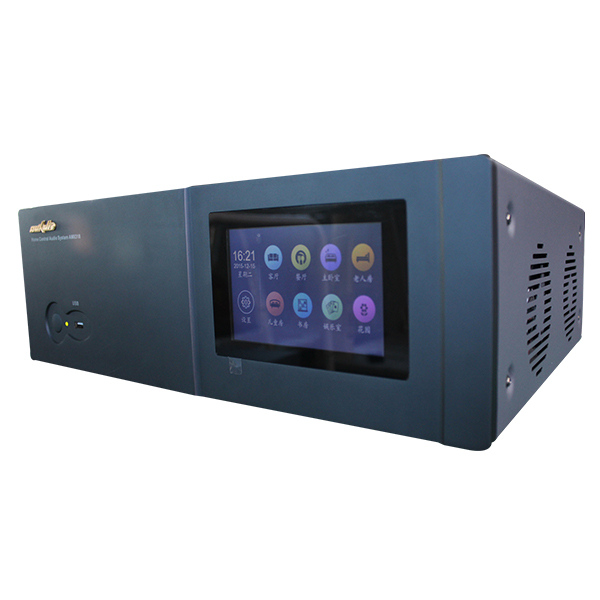

AM8318 system is a set of ideal modernized multiroom audio systems. Beside with all the functions of traditional home audio, it is also with:① Different room can listen to different music program, for example, the aged and the young like different music, then the aged can play traditional opera i...
Designed to satisfy versatile structural requirements. This model is widely integrated across multiple fields:
Model | AM8318 | |
Number of Zones | 8 Zones | |
Audio Indicator | AUX IN Sensitivity | 775mV±100mV |
AUX IN Resistance | ＞10kΩ | |
Rated Output Power | Zone 1, 2×60W/8Ω | |
Zone 2-8, 14×30W/8Ω | ||
Frequency Response | 20Hz-20kHz (±0.5dB) | |
THD | ＜1% (f=1kHz, 1/3 rated output power) | |
SNR | ＞81dB | |
AUX OUT | Stereo output: 775mV±100mV | |
Amplifier Output Protection | Output short circuit, overload, DC protection | |
Power Supply | AC220-240V/50-60Hz | |
Total Power | 600W | |
Power Protection | AC220V/F4A | |
Package Dimensions (mm) | (L×W×H) 540×540×230 | |
Dimensions (mm) | (L×W×H) 430×345×132 | |
Gross Weight | 19kg | |
Net Weight | 14.6kg |
