Outdoor Protection
Real-Time Control
Grid Support

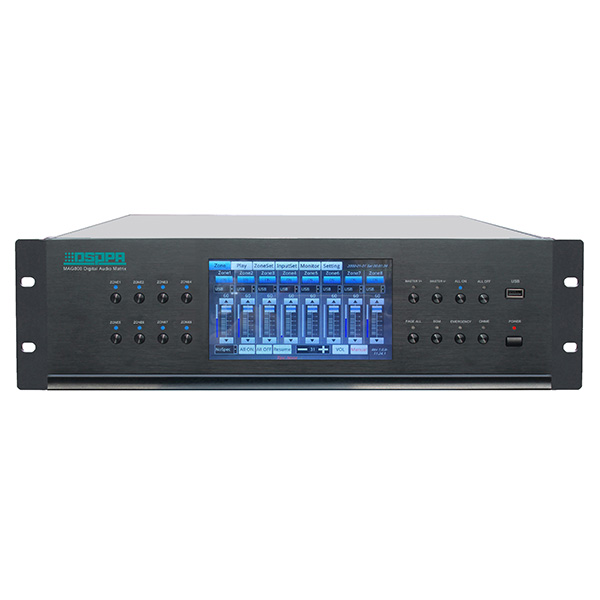

Engineered feature supporting 7” touch screen, built for peak operational performance.
Engineered feature supporting in control software, integrated with audio matrix, zones, timing, voice alarm, etc. for peak operational performance.
Engineered feature supporting 8 channel balanced audio inputs, 8 channel balanced audio outputs, each channel with individual eq control for peak operational performance.
Transforming conventional environments into dynamic high-resolution digital hubs.
Engineered feature supporting each zone support remote panel control, including audio selection, audio input and volume control for peak operational performance.
Engineered feature supporting support 4 remote paging microphone, 2 local mic with phantom power supply for peak operational performance.
Configured with power saving controls to decrease general electricity consumption levels.
Built-in one-touch alarm, chime input, Fire Alarm input, 8 dry contact inputs and one dry contact outputBuilt-in TEL input module, with password management, support TEL paging to all zonesSupport monitoring function, can monitor each individual zone separatelySupport remote computer control and A...
Designed to satisfy versatile structural requirements. This model is widely integrated across multiple fields:

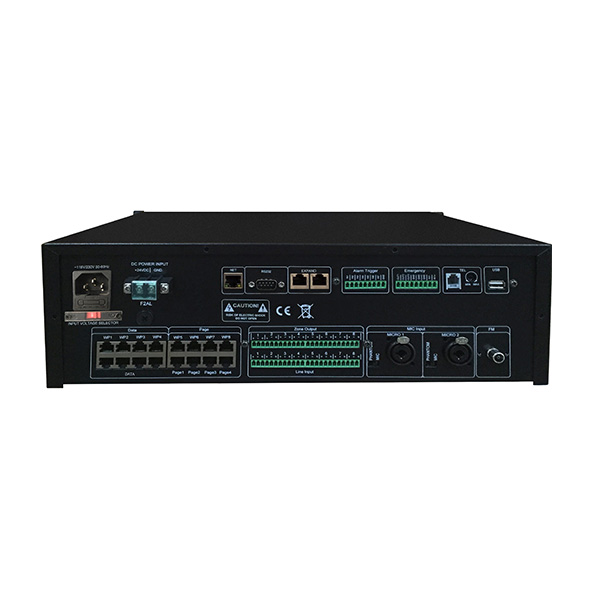

Model | MAG808 |
Power supply | AC110V orAC220V/50Hz DC24V |
Input sensitivity of MIC1 & MIC 2 | 10mV |
Input sensitivity of lines 1-8 | 250mV |
Output voltage of lines 1-8 | 1V |
Input sensitivity of EMC | 250mV |
MIC I/O frequency response (±3dB) | 80Hz～10kHz (±3dB) |
Line I/O frequency response (±3dB) | 20Hz～20kHz (±3dB) |
Radio frequency band | 86-108 MHz |
Max. output noise | <3mV |
Output distortion (@1kHz) | <1% 1KHz |
Machine size | 484mm×375mm×132mm (1PC) |
Packing size | 540mm×510mm×195mm (1PC) |
Net weight | 10Kg |
Gross weight | 13Kg (1PC) |
Submit details to get direct engineer response, structural calculation advising, or customized dimensions pricing.
