Outdoor Protection
Real-Time Control
Grid Support
Engineered feature supporting employ 4×4.5 for peak operational performance.
Engineered feature supporting inch full for peak operational performance.
Engineered feature supporting range speaker units, providing uniform 360 for peak operational performance.
Transforming conventional environments into dynamic high-resolution digital hubs.
Engineered feature supporting degree sound coverage for enhanced performance. for peak operational performance.
Engineered feature supporting indoor sound field uniformity: the difference between the maximum and minimum steady for peak operational performance.
Configured with power saving controls to decrease general electricity consumption levels.

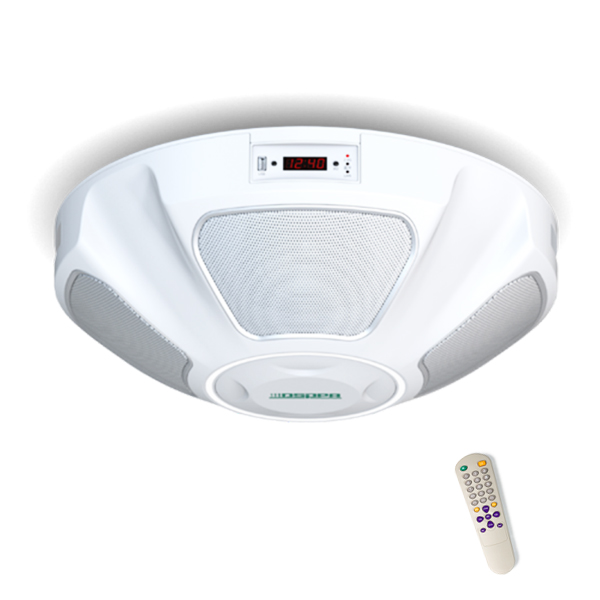

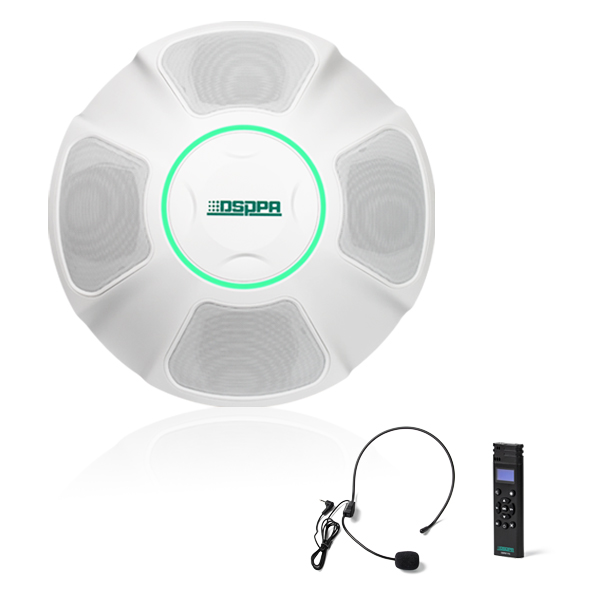

The IP network classroom ceiling speaker utilizes a professional-grade audio processing chip and operates on an embedded Linux operating system, ensuring stability and reliability. It manages network program sources with a 7-level or higher priority management function, divided into three categor...
Designed to satisfy versatile structural requirements. This model is widely integrated across multiple fields:
Model | MAG6468 | |
AUX1 | Input Sensitivity | 300±50mV |
Frequency Response | 20Hz-18kHz | |
Distortion | ≤0.6% | |
S/N Ratio | ≥76dB | |
AUX2 | Input Sensitivity | 300±50mV |
Frequency Response | 20Hz-18kHz | |
Distortion | ≤0.55% | |
S/N Ratio | ≥76dB | |
Network Playback | Input Sensitivity | -10 (±1)mV |
Frequency Response | 20Hz-18kHz | |
Distortion | ≤0.4% | |
S/N Ratio | ≥76dB | |
2.4G Wireless MIC | Input Sensitivity | 80±10mV |
Frequency Response | 150Hz-10kHz | |
Distortion | ≤0.7% | |
S/N Ratio | ≥70dB | |
Bluetooth | Input Sensitivity | -10±1mV |
Distortion | ≤9% | |
Frequency Response | 20Hz-18kHz | |
S/N Ratio | ≥76dB | |
Power Supply | AC220V/50Hz | |
2.4G Wireless Microphone | ||
Transmission and Receiving Distance | ≥10m | |
AUX Input Sensitivity | 80mV±10mV | |
THD | ＜1% | |
Frequency Characteristics | 80Hz~10kHz (-3dB) | |
S/N Ratio | ≥70dB | |
Transmission and Receiving Distance | ≥10m | |
Pairing Method | Automatic frequency matching, automatic frequency hopping, automatic frequency locking, 1-to-1 matching. | |
Matching Distance | Set to within 3 meters, adjustable via the operational microphone. | |
Outer Packaging Dimensions (L×W×H mm) | 750×595×300mm | |
Machine Dimensions (L×W×H mm) | Φ510×200mm | |
Gross Weight | 12kg | |
Net Weight | 8kg |
Submit details to get direct engineer response, structural calculation advising, or customized dimensions pricing.
