Outdoor Protection
Real-Time Control
Grid Support
Engineered feature supporting 17.3 inch touch screen, easy to operation for peak operational performance.
Engineered feature supporting b/s framework, easy to login the server and control the system for peak operational performance.
Engineered feature supporting support voip protocol, realize video intercom between the terminal for peak operational performance.
Transforming conventional environments into dynamic high-resolution digital hubs.
Engineered feature supporting the terminal can connect with ipc camera, ai function customized for peak operational performance.
Engineered feature supporting support main/standby switching;support zone paging and monitoring;support electronic maps for peak operational performance.
Configured with power saving controls to decrease general electricity consumption levels.

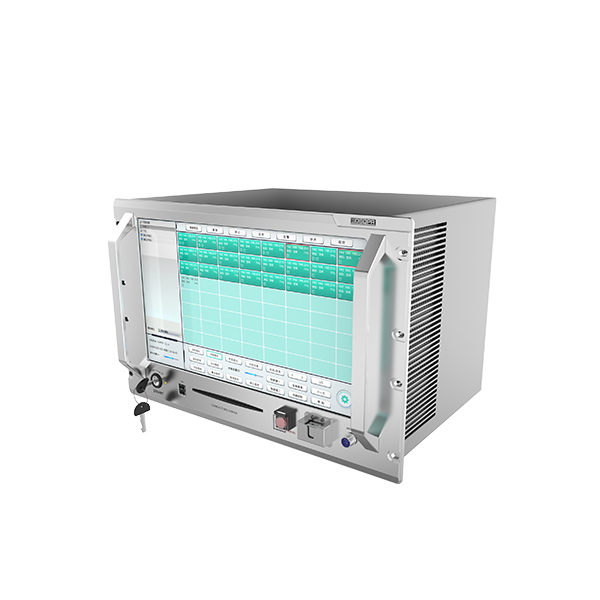

MAG6282 Visual Network Public Address Center is compatible with terminals with different functions, including Video Paging Controllers, Video Outdoor LED Screen Terminals, Video Intelligent Lamp Posts, Video Intercom Terminals, etc. The host integrates audio and video player, zone divider, preamp...
Designed to satisfy versatile structural requirements. This model is widely integrated across multiple fields:
|
Model |
MAG6282 |
|
Computer System |
WIN7 and above |
|
CPU |
Intel(R) Core(TM)i5-5200U |
|
RAM |
4G RAM |
|
Hard Disk |
120G SSD+500G HDD |
|
Audio Play Format |
MP3 |
|
Playing Bit Rate |
120k-320K |
|
Operating System |
32/64 bits |
|
Number of Terminals |
Unicast within 110, multicast unlimited |
|
Screen Size |
17.3" LCD |
|
Control Method |
Touch screen |
|
Timing Power Load Capacity |
Mono channel current: 2A |
|
System Audio Signal SNR |
LINE: >70dB; MIC: >60dB |
|
System Audio Signal Distortion |
1kHz<0.5% |
|
System Audio Signal Standard Input Level |
LINE: 300mV±20mV; MIC: 10mV±2mV. |
|
System Audio Signal Standard Output Level |
0dBV |
|
Power Output Mode |
Constant Resistance Output |
|
Undistorted Output Power |
10W |
|
Power Consumption |
AC 220V/50Hz/150W |
|
Package Dimensions (L×W×H mm） |
535×360×540 |
|
Machine Dimensions (L×W×H mm） |
483×308×445 |
|
Gross Weight |
28.7kg |
|
Net Weight |
19.5kg |
|
System Software |
Visual network system software package. All rights reserved, no copying or counterfeiting. |
Submit details to get direct engineer response, structural calculation advising, or customized dimensions pricing.
