Engineered feature supporting 8 inputs & 20/40 outputs audio matrix for peak operational performance.
Engineered feature supporting 7" color touch screen for friendly use for peak operational performance.
Engineered feature supporting support 4 remote paging stations for peak operational performance.
Transforming conventional environments into dynamic high-resolution digital hubs.
Engineered feature supporting support remote computer control for peak operational performance.
Engineered feature supporting weekly timer function: 5 programs, each 500 points for peak operational performance.
Configured with power saving controls to decrease general electricity consumption levels.

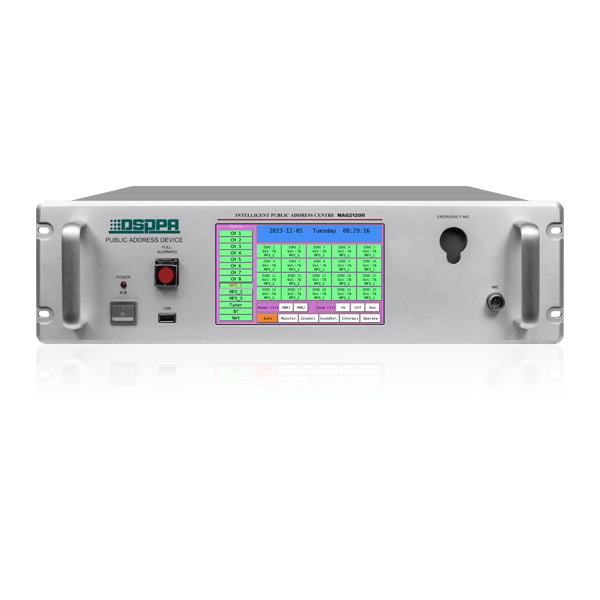

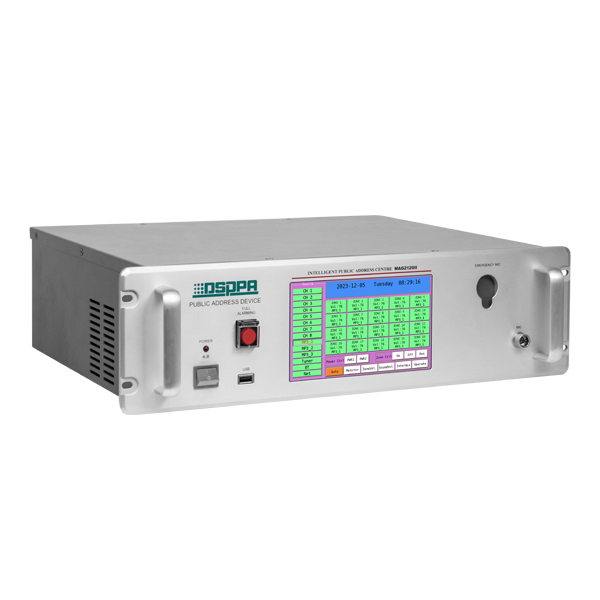

MAG2120II (MAG2140II) is a powerful intelligent PA system center. It is an 8x20 (8x40) audio matrix. It has all the functions of a normal PA project, such as background music playing, programmed audio playing, remote paging, fire alarm, etc. It supports 8 audio inputs and 20 (40) audio outputs. T...
Designed to satisfy versatile structural requirements. This model is widely integrated across multiple fields:
|
Model |
MAG2120II |
MAG2140II |
|
|
Number of control zone |
20 zones |
40 zones |
|
|
Display |
7-inch color screen |
||
|
Control mode |
Touch screen/ Remote control/ Wireless remote control |
||
|
Host Built-in Storage Capacity |
6G |
||
|
Input sensitivity |
250mV(±25mV) |
||
|
Output |
1V(0dBV) |
||
|
Built-in audio source |
Radio,MP3 |
||
|
MP3 |
Frequency response |
20Hz-20kHz |
|
|
SNR |
85dB |
||
|
Dynamic range |
80dB |
||
|
Harmonic distortion |
0.05% |
||
|
Radio
|
AM |
Sensitivity |
52dBu |
|
Receiving range |
522kHz-1620kHz |
||
|
Pass-band |
6kHz |
||
|
SNR |
35dB |
||
|
FM |
Sensitivity |
26dBu |
|
|
Receiving range |
87.0MHz-108.0MHz |
||
|
Pass-band |
15kHz |
||
|
SNR |
75dB |
||
|
Wireless control |
12 groups,withcontrol distance within 100-1000m |
||
|
Frequency response |
20Hz-20kHz(±3dB) (Single zone) |
||
|
SNR |
85dB |
||
|
Crosstalk |
70dB |
||
|
Alarm trigger mode |
Low level of0V, and high level of5V～24V |
||
|
Timing power output |
PWR1 |
AC220V/50Hz/500W |
|
|
PWR2 |
AC220V/50Hz/500W |
||
|
Fuse |
Machine protection |
F1AL |
|
|
Power protection
|
F10AL |
||
|
Power supply |
AC220V (±10%)/ 50Hz |
||
|
Overall power consumption |
22W |
||
|
Package dimension (mm) |
（L×W×H）555×460×235 |
||
|
Machine dimension (mm) |
（L×W×H）484×360×132 |
||
|
Gross weight |
11.8kg |
12.3kg |
|
|
Net weight |
9.2kg |
9.6kg |
