Engineered feature supporting 5" color touch screen for friendly use for peak operational performance.
Engineered feature supporting 10 zones audio outputs for peak operational performance.
Engineered feature supporting audio sources: mic input, usb, sd for peak operational performance.
Transforming conventional environments into dynamic high-resolution digital hubs.
Engineered feature supporting with built for peak operational performance.
Engineered feature supporting in fireman mic for emergency use for peak operational performance.
Configured with power saving controls to decrease general electricity consumption levels.

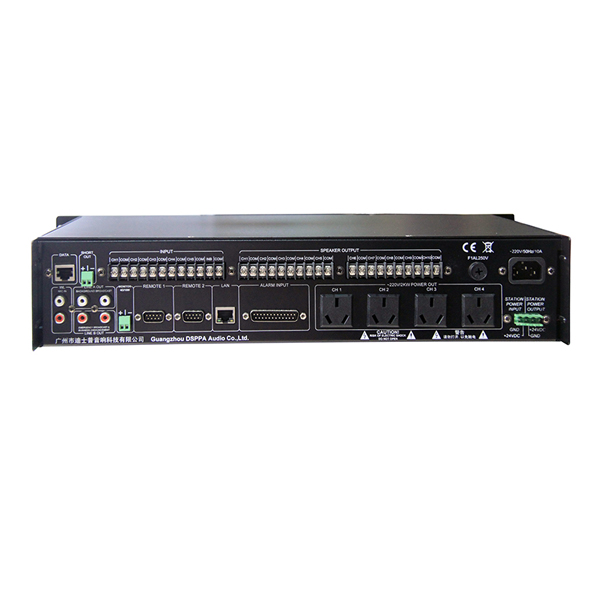

MAG1116 is a powerful intelligent PA system center. It is a 10 zones PA system solution. It has all the functions needed for a normal PA project, such as background music playing, programed audio playing, remote paging,fire alarm, etc.It supports 5 audio inputs and 10 zones outputs. The audio sou...
Designed to satisfy versatile structural requirements. This model is widely integrated across multiple fields:
No. | Item | Indicator requirement | Unit | |
1 | Channel B output At 1V/1KHZ sine wave | Microphone input sensitivity | 2--3.5 | mV |
Wireless microphone input sensitivity | 200--350 | mV | ||
Remote paging input sensitivity (voltage at pin No.8 and No.9) | 1000±100 | mV | ||
Line recording input sensitivity | 200--350 | mV | ||
Microphone recording input sensitivity | 2--3.5 | mV | ||
2 | Channel A output At 1V/1KHZ sine wave | MP3 input sensitivity | 200--350 | mV |
Line recording input sensitivity | 200--350 | mV | ||
Microphone recording input sensitivity | 2--3.5 | mV | ||
3 | Maximum noise | Channel A/B (When channel B is switched to wireless microphone) | ≤0.5 | mV |
When channel B is switched to local microphone input | ≤1 | mV | ||
Monitoring | ≤1.5 | mV | ||
4 | Degree of distortion (Output of 1KHZ 1V) | Channel A/B (Input of line) | ≤0.3 | % |
Channel B (Input of local microphone) | ≤0.5 | % | ||
5 | Frequency response (±3dB) | Microphone input frequency response | 50---20K | HZ |
Remote paging microphone input frequency response | 50---20K | HZ | ||
Wireless microphone input frequency response | 100---20K | HZ | ||
MP3 output frequency response | 200---20K | HZ | ||
Line recording input frequency response (output of channel A) | 350---20K | HZ | ||
Line recording input frequency response (output of channel B) | 100---10K | HZ | ||
6 | Monitoring | (220V power supply/1KHZ, ≤1% degree of distortion) | 6-7.5 | V |
(+24V power supply/1KHZ, ≤1% degree of distortion) | 5-6 | V | ||
7 | Protection | 1.AC220V/ 1A; 2.DC+24V/2A (Only for MAG1116D) | ||
8 | Dielectric strength test | Between poles of power supply and input/output terminal | 4200 | VDC |
Between poles of power supply and metal shell | 2200 | VDC | ||
9 | Net weight | 8kg | ||
10 | Gross weight | 9.5kg | ||
11 | Machine Dimension (L×W×H) | 483×350×88mm | ||
12 | Package Dimension (L×W×H) | 555×455×185mm |
